TPDU-M

Features & Components Included

The Blue1 Portable Dispensing Unit (TPDU-M) is a DEF compliant, enclosed, secure mobile dispensing system. Our PE tank is ISO 22241 compliant for use with DEF. The TPDU-M comes with an easy to lift, hinged lid that keeps equipment and DEF free from dust and debris and the locking arm keeps the lid open when in use. The TPDU-M has a tamper-proof locking system for total security. This unique dispensing system is housed in heavy-duty powder-coated carbon steel with a rust-resistant finish. The outside view strip allows the operator to monitor DEF levels.

  • TD12V Self-Priming Diaphragm Pump
  • 20 ft. Dispense Hose
  • 4 ft. Suction Hose
  • Auto Shut Off Nozzle w/ Swivel
  • Blue1 High Flow Valve
  • Blue1 High Flow Dispense Coupler
  • DEF Port will only accept DEF Nozzle

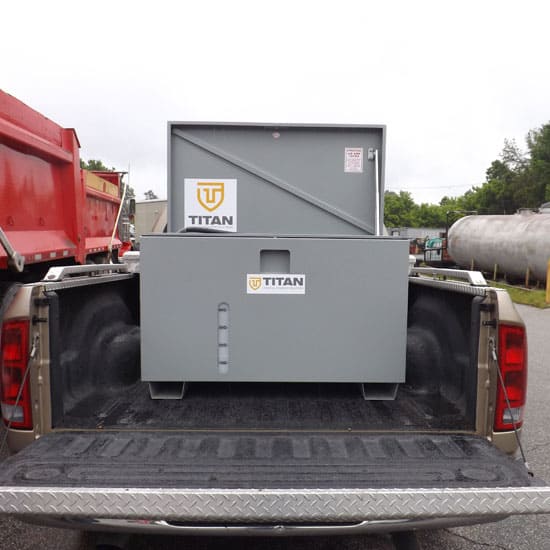

  • Forklift Accessible for Easy Transport
  • Lockable Lid for Complete Security
  • Front View Strip for Fluid Level Visibility
PDU Capacity Weight (LBS) Dimensions (LxDXH) Heated Option

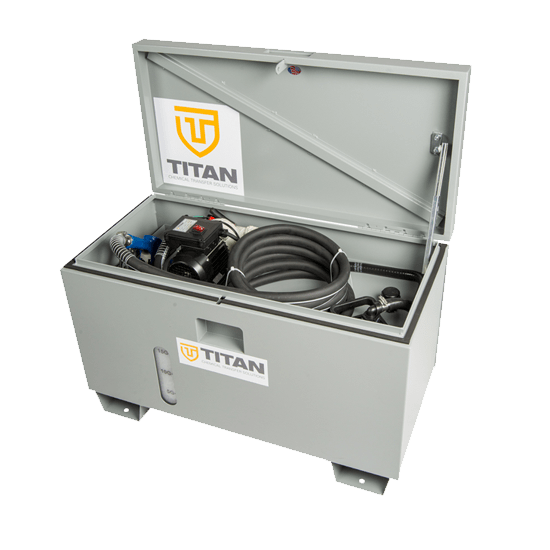

20 Gallons 131 30x18x22 in No

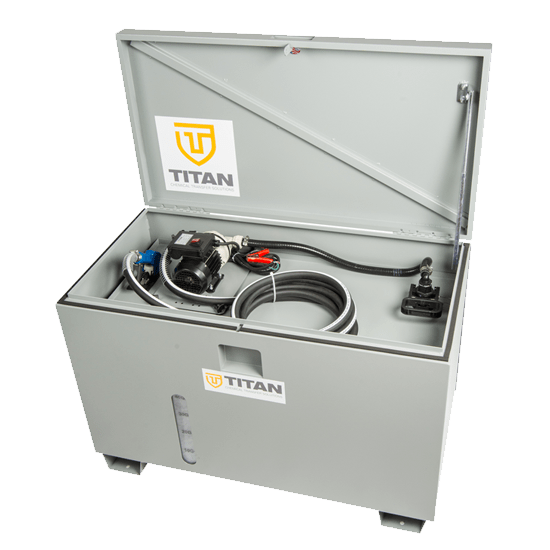

60 Gallons 200 45x24x30 in Yes

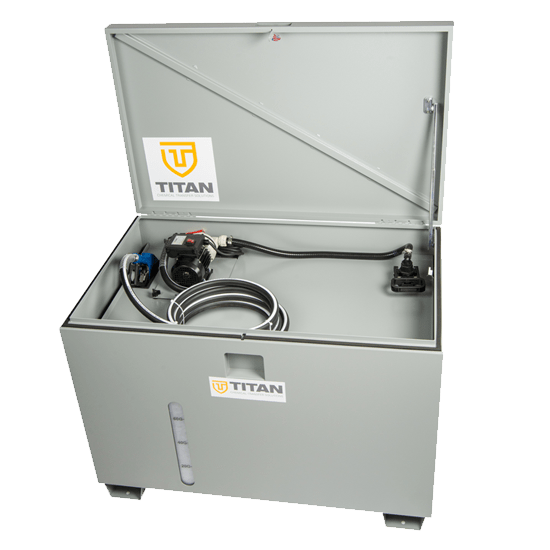

100 Gallons 261 48x30x34 in Yes

Files For Download

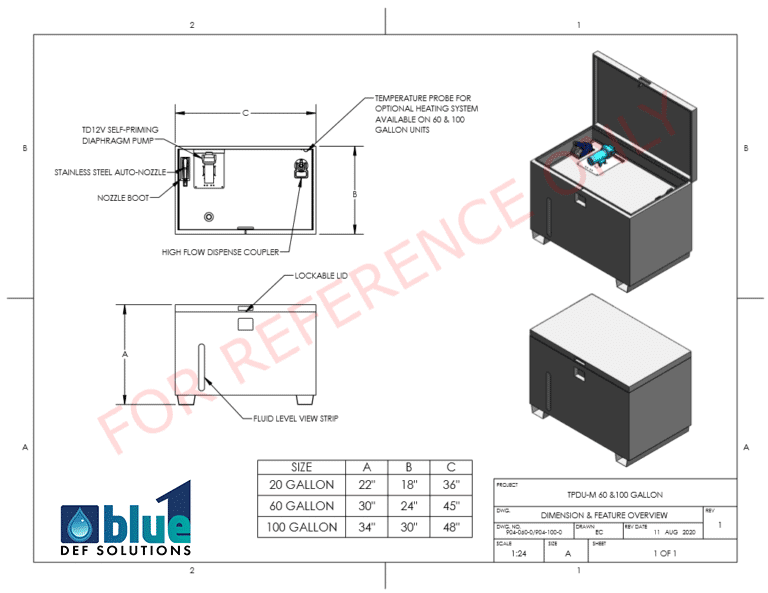

TPDU-M Drawing
TPDU-M Spec Sheet

Inquire below or call (864) 385-7030
