TD1

Features & Components Included

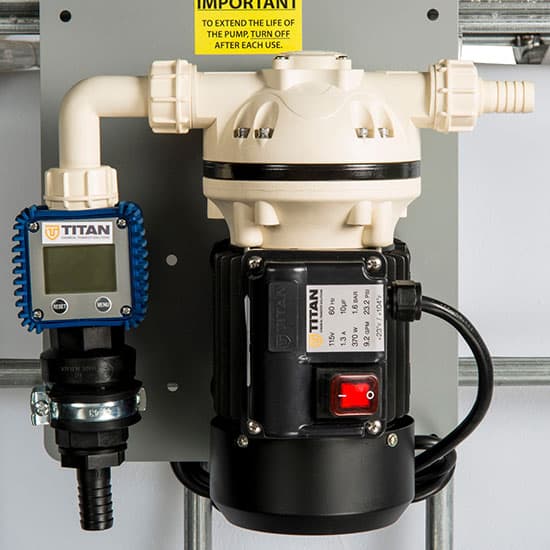

The Blue1 TD1 is a self-priming, diaphragm style pump designed for cost-effective use with drums, totes and via a wall mount system. Engineered and constructed to meet the rigors of dispensing DEF from industrial containers, this pump’s universal mounting bracket is designed for optimal versatility. The TD1 can be set up in minutes; combined with the Blue1 High Flow Valve and Coupler system, it can systematically deliver pure DEF. Every TD1 will provide the customer with instant flow and filling rates above 6 GPM. This pump can be used in many different DEF applications and will provide excellent results. Whether dispensing from a drum or tote, the TD1 provides the end-user with an excellent flow of DEF at an affordable price. All pump systems come with a convenient nozzle hook and hose hanger.

  • Great performance and quiet operation
  • Self-priming
  • Built-In 6 Minute Timer
  • Stainless steel motor shaft
  • Polypropylene housing
  • Reliable EPDM diaphragm
  • Viton check valve
  • Flow rate 6-9 GPM
  • 115V 60Hz, .44 HP
  • Operating pressure 1.6 bar (25PSI)

You may also need:

  • 101-411-1 High Flow Valve, 4 Cam, 275g Dip Tube
  • 101-411-2 High Flow Valve, 4 Cam, 330g Dip Tube
  • 911-009-0 High Flow 4 Cam Dispense Coupler w/90 Barb

Files For Download

TD1 Spec Sheet Spec Sheet
