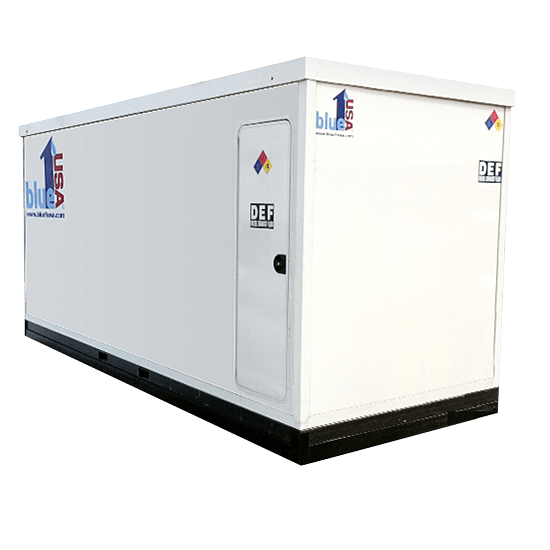

Remote Platinum

Features & Components Included

  • Pre-wired electrical components certified to UL-508 & CSA C22.2 standards
  • Submersible DEF pump
  • Dispenser not included
  • Compatible w/all retail and commercial dispensers
  • Inventory level display with audible overfill alarm
  • HDPE primary tank with manway
  • All models include 110% Secondary Containment
  • Insulated FRP panels
  • Aesthetically pleasing, smooth, glossy white exterior finish
  • Conforms to ISO 22241-3,4 standards
  • Hinged roof w/pneumatic lifts (Except 3400G and greater)
  • Stainless steel piping
  • 2” Fill-port dry break adapter
  • Leak-proof press fittings & BSPP connections
  • Atmospheric vent w/protective screen
  • Forklift compatible base frame
  • 400-6,000 Gallon Storage Capacity

Capacity (Gallons) Weight (lbs) Dimensions (WxDxH)
400 950 48x69x103 inches
500 1400 44x107x89 inches
750 1600 44x125x99 inches
1000 1900 48x132x110 inches
1320 2300 46x159x110 inches
2000 2900 73x197x94 inches
3400 3800 93x192x107 inches
6000 6100 110x231x126 inches

Files For Download

SD-PLT-REM-S4 (Remote Platinum – Wide, Side Door)
SD-PLT-REM-S3 (Remote Platinum – Wide, End Door)
Remote Platinum – Narrow – End Door (500g-1320g)
Remote Platinum Spec Sheet
