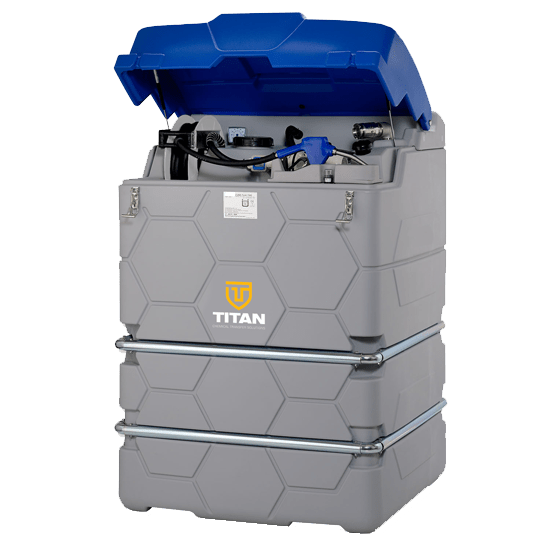

Cube

Features & Components Included

  • Robust Double Wall Containment
  • Outer Tank Holds 110% of Inner Tank Volume
  • 6 GPM 120V Pump
  • General Construction Inspection Approval Z-40321-510
  • Hinged, Lockable Lid
  • Integral Sump
  • Electronic Overfill Sensor

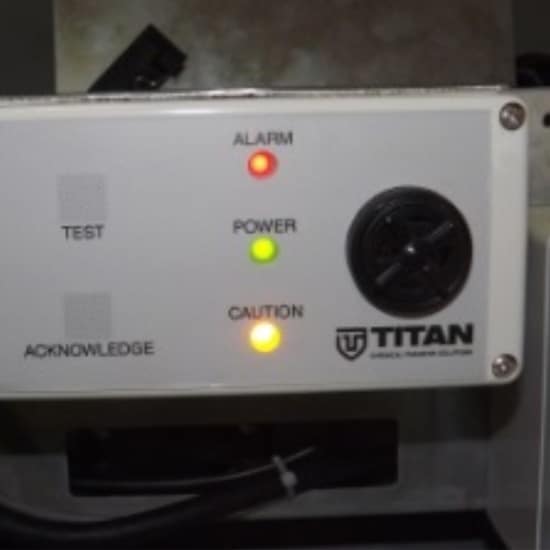

  • Optical Bund Alarm
  • 2” Dry Break Fill Port
  • Liquid Level Gauge
  • Auto Nozzle and Nozzle Holder
  • Fully Assembled and Pre-Wired
  • Extreme Cube includes a 500W internal probe heater to prevent DEF from freezing.
  • Available in two sizes.



Capacity Weight (LBS) Dimensions (WxDXH)
396 GAL 451 47x45x71 inches
660 GAL 584 47x71x71 inches

Files For Download

1320g Cube
400g/660g Cube
Cube Commercial Spec Sheet

Inquire below or call (864) 385-7030
